SPECIFICATION
|

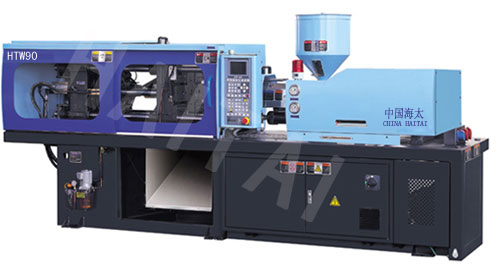

WZHTW90
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
30
|
32
|
35
|
38
|
| Screw L/D ratio | L/D |
23.5
|
22
|
20.1
|
18.5
|
| Shot volume(theoretical) | cm3 |
117
|
133
|
158
|
187
|
| Injiection weight(ps) | g |
106
|
121
|
144
|
170
|
| Injection rate | g/s |
71
|
81
|
97
|
115
|
| Injection pressure | Mpa |
230
|
203
|
170
|
144
|
| Screw pressure | rpm |
225
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
900
|
|||
| Open stroke | mm |
320
|
|||
| Space between tie bars(W×H) | mm |
355×330
|
|||
| Max.Mold height | mm |
350
|
|||
| Min.Mold height | mm |
150
|
|||
| Ejector stroke | mm |
90
|
|||
| Ejector force | kN |
30
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
11
|
|||
| Heating power | kW |
7.55
|
|||
| Machine dimension(L×W×H) | m |
3.81×1.19×1.77
|
|||
| Oiltank cubage | L |
160
|
|||
| Machine weight | t |
2.8
|
|||

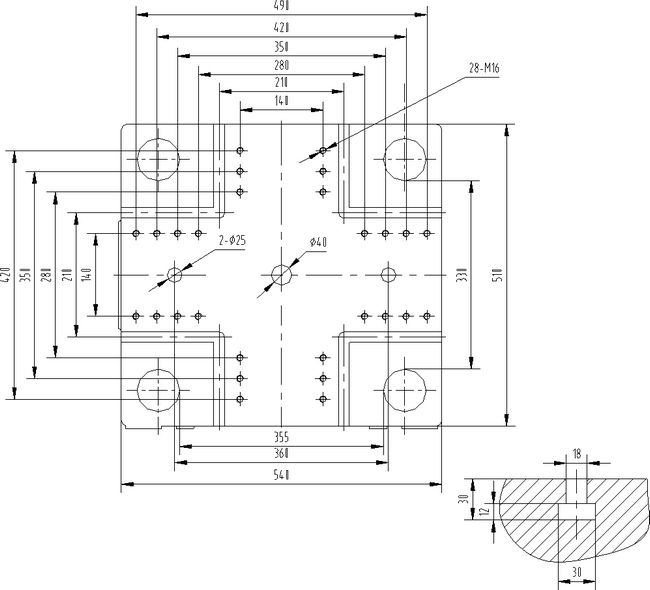

| PLATEN DIMENSIONS |  |

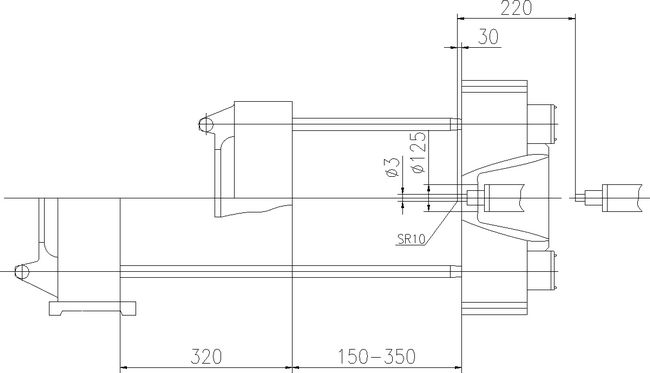

| MOULD SPACE DIMENSOINS |  |
|
