SPECIFICATION

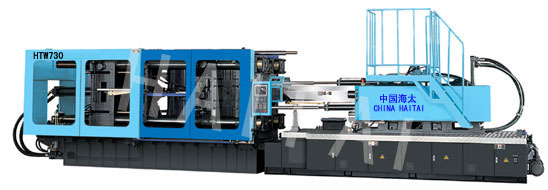

WZHTW730
INJECTION UNIT
|
SPECIFICATION
|
WZHTW730
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
90
|
95
|
105
|
110
|
| Screw L/D ratio | L/D |
23.2
|
22
|
19.9
|
19
|
| Shot volume(theoretical) | cm3 |
2861
|
3188
|
3894
|
4273
|
| Injiection weight(ps) | g |
2603
|
2901
|
3543
|
3888
|
| Injection rate | g/s |
574
|
640
|
781
|
858
|
| Injection pressure | Mpa |
195
|
175
|
143
|
130
|
| Screw pressure | rpm |
115
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
7300
|
|||
| Open stroke | mm |
950
|
|||
| Space between tie bars(W×H) | mm |
950×950
|
|||
| Max.Mold height | mm |
960
|
|||
| Min.Mold height | mm |
400
|
|||
| Ejector stroke | mm |
280
|
|||
| Ejector force | kN |
210
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
37+37
|
|||
| Heating power | kW |
56.7
|
|||
| Machine dimension(L×W×H) | m |
11.43×2.40×3.14
|
|||
| Oiltank cubage | L |
1000
|
|||
| Machine weight | t |
37
|
|||
| PLATEN DIMENSIONS |  |
| MOULD SPACE DIMENSOINS |  |
