SPECIFICATION
|

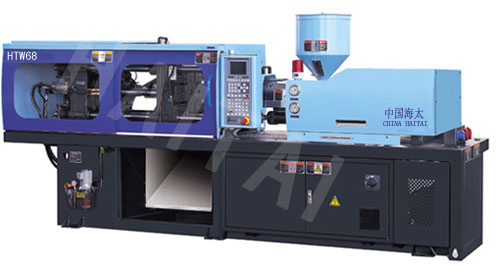

WZHTW68
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
26
|
30
|
32
|
| Screw L/D ratio | L/D |
25.4
|
22
|
20.6
|
| Shot volume(theoretical) | cm3 |
67.6
|
90
|
102
|
| Injiection weight(ps) | g |
61.4
|
82
|
93
|
| Injection rate | g/s |
55
|
73
|
83
|
| Injection pressure | Mpa |
250
|
188
|
165
|
| Screw pressure | rpm |
195
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
680
|
||
| Open stroke | mm |
280
|
||
| Space between tie bars(W×H) | mm |
310×310
|
||
| Max.Mold height | mm |
320
|
||
| Min.Mold height | mm |
100
|
||
| Ejector stroke | mm |
80
|
||
| Ejector force | kN |
28
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
7.5
|
||
| Heating power | kW |
6.8
|
||
| Machine dimension(L×W×H) | m |
3.65×1.16×1.73
|
||
| Oiltank cubage | L |
150
|
||
| Machine weight | t |
2.5
|
||
| PLATEN DIMENSIONS |  |
| MOULD SPACE DIMENSOINS |  |
