SPECIFICATION

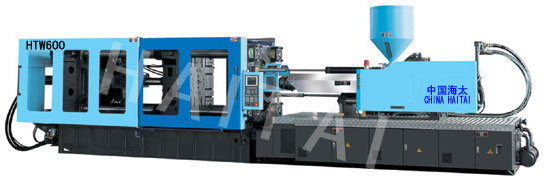

WZHTW600
INJECTION UNIT
|
SPECIFICATION
|
WZHTW600
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
90
|
95
|
100
|
| Screw L/D ratio | L/D |
20
|
19
|
18
|
| Shot volume(theoretical) | cm3 |
2544
|
2835
|
3140
|
| Injiection weight(ps) | g |
2315
|
2580
|
2858
|
| Injection rate | g/s |
552
|
612
|
679
|
| Injection pressure | Mpa |
184
|
165
|
149
|
| Screw pressure | rpm |
150
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
6000
|
||
| Open stroke | mm |
870
|
||
| Space between tie bars(W×H) | mm |
870×870
|
||
| Max.Mold height | mm |
900
|
||
| Min.Mold height | mm |
350
|
||
| Ejector stroke | mm |
250
|
||
| Ejector force | kN |
150
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
30+37
|
||
| Heating power | kW |
42.95
|
||
| Machine dimension(L×W×H) | m |
10.2×2.24×2.71
|
||
| Oiltank cubage | L |
900
|
||
| Machine weight | t |
28
|
||

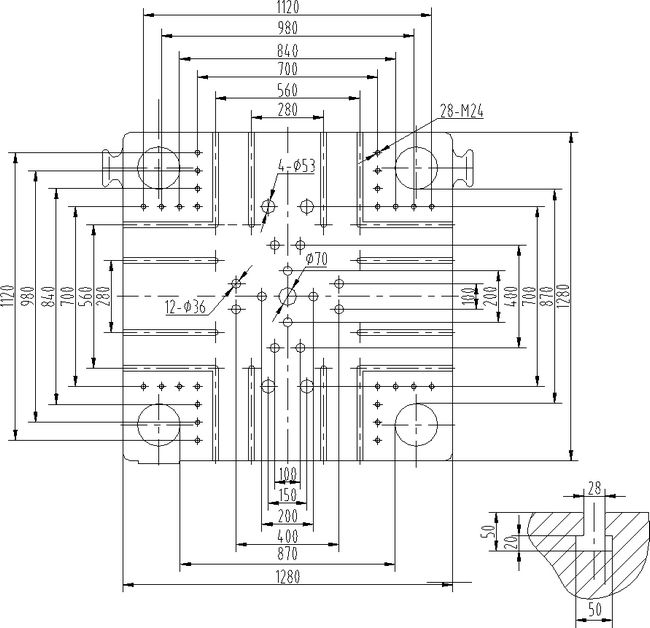

| PLATEN DIMENSIONS |  |

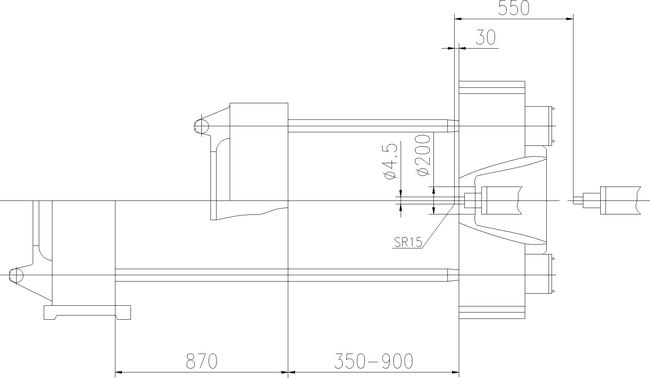

| MOULD SPACE DIMENSOINS |  |
