SPECIFICATION
WZHTW3000
INJECTION UNIT
|
SPECIFICATION
|

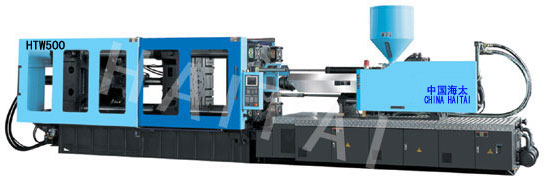

WZHTW500
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
75
|
80
|
85
|
| Screw L/D ratio | L/D |
22.7
|
21
|
20
|
| Shot volume(theoretical) | cm3 |
1727
|
1965
|
2218
|
| Injiection weight(ps) | g |
1560
|
1788
|
2018
|
| Injection rate | g/s |
386
|
442
|
499
|
| Injection pressure | Mpa |
191
|
168
|
148
|
| Screw pressure | rpm |
130
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
5000
|
||
| Open stroke | mm |
770
|
||
| Space between tie bars(W×H) | mm |
820×800
|
||
| Max.Mold height | mm |
810
|
||
| Min.Mold height | mm |
330
|
||
| Ejector stroke | mm |
240
|
||
| Ejector force | kN |
150
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
55
|
||
| Heating power | kW |
31.4
|
||
| Machine dimension(L×W×H) | m |
8.4×1.92×2.76
|
||
| Oiltank cubage | L |
750
|
||
| Machine weight | t |
20
|
||
| PLATEN DIMENSIONS |  |
| MOULD SPACE DIMENSOINS |  |
