SPECIFICATION
|
WZHTW380
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
70
|
75
|
80
|
| Screw L/D ratio | L/D |
23.6
|
22
|
20.6
|
| Shot volume(theoretical) | cm3 |
1500
|
1723
|
1960
|
| Injiection weight(ps) | g |
1365
|
1567
|
1784
|
| Injection rate | g/s |
335
|
384
|
437
|
| Injection pressure | Mpa |
199
|
173
|
152
|
| Screw pressure | rpm |
150
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
4000
|
||
| Open stroke | mm |
705
|
||
| Space between tie bars(W×H) | mm |
730×730
|
||
| Max.Mold height | mm |
750
|
||
| Min.Mold height | mm |
250
|
||
| Ejector stroke | mm |
180
|
||
| Ejector force | kN |
110
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
37
|
||
| Heating power | kW |
29.3
|
||
| Machine dimension(L×W×H) | m |
7.54×1.88×2.41
|
||
| Oiltank cubage | L |
550
|
||
| Machine weight | t |
15.4
|
||

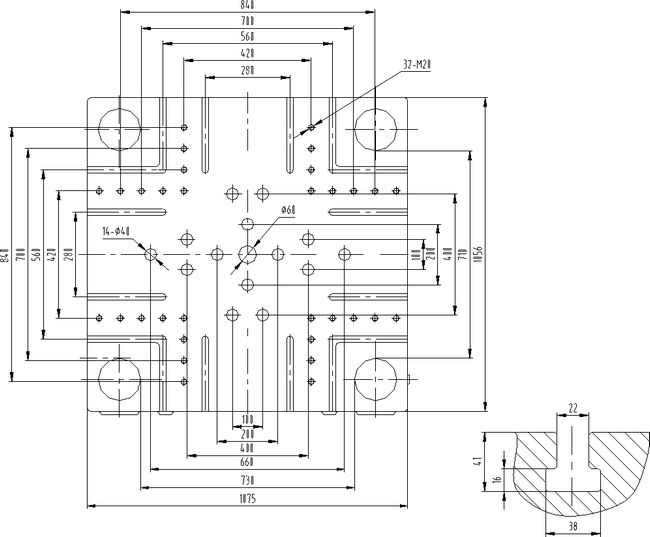

| PLATEN DIMENSIONS |  |

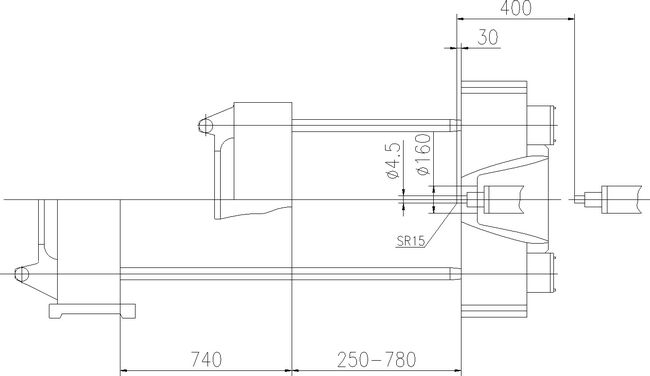

| MOULD SPACE DIMENSOINS |  |
