SPECIFICATION
WZHTW3000
INJECTION UNIT
|
SPECIFICATION
|
WZHTW3000
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
180
|
210
|
220
|
| Screw L/D ratio | L/D |
24
|
24
|
22.9
|
| Shot volume(theoretical) | cm3 |
29390
|
40003
|
43904
|
| Injiection weight(ps) | g |
26745
|
36402
|
39953
|
| Injection rate | g/s |
1468
|
2000
|
2200
|
| Injection pressure | Mpa |
210
|
155
|
141
|
| Screw pressure | rpm |
50
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
30000
|
||
| Open stroke | mm |
2000
|
||
| Space between tie bars(W×H) | mm |
1900×1750
|
||
| Max.Mold height | mm |
1900
|
||
| Min.Mold height | mm |
1000
|
||
| Ejector stroke | mm |
450
|
||
| Ejector force | kN |
565
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
55+55+55+55
|
||
| Heating power | kW |
177
|
||
| Machine dimension(L×W×H) | m |
22.0×5.50×5.0
|
||
| Oiltank cubage | L |
4500
|
||
| Machine weight | t |
220
|
||

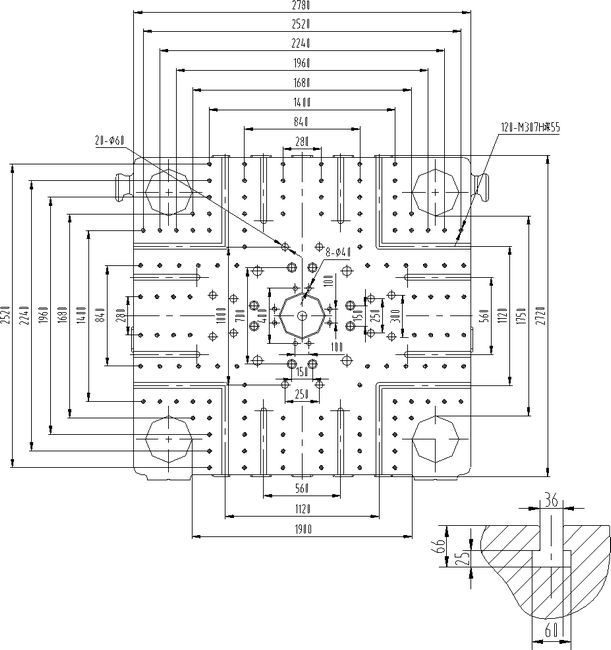

| PLATEN DIMENSIONS |  |

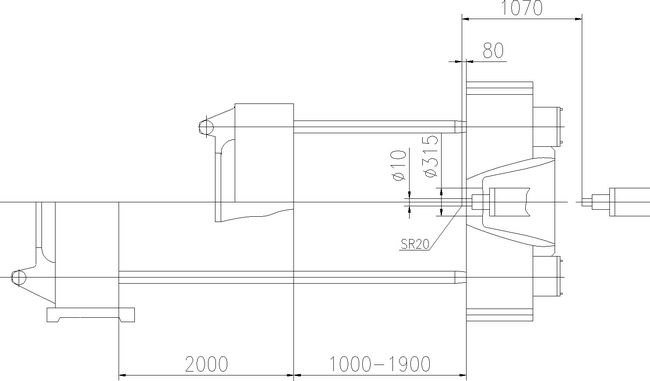

| MOULD SPACE DIMENSOINS |  |
