SPECIFICATION
|
WZHTW280
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
55
|
60
|
65
|
| Screw L/D ratio | L/D |
22.9
|
21
|
19.4
|
| Shot volume(theoretical) | cm3 |
676
|
805
|
945
|
| Injiection weight(ps) | g |
615
|
732
|
859
|
| Injection rate | g/s |
223.5
|
266
|
312.2
|
| Injection pressure | Mpa |
202.3
|
170
|
144.9
|
| Screw pressure | rpm |
220
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
2800
|
||
| Open stroke | mm |
590
|
||
| Space between tie bars(W×H) | mm |
610×610
|
||
| Max.Mold height | mm |
630
|
||
| Min.Mold height | mm |
200
|
||
| Ejector stroke | mm |
150
|
||
| Ejector force | kN |
70
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
30
|
||
| Heating power | kW |
18.3
|
||
| Machine dimension(L×W×H) | m |
5.98×1.66×2.37
|
||
| Oiltank cubage | L |
350
|
||
| Machine weight | t |
9
|
||

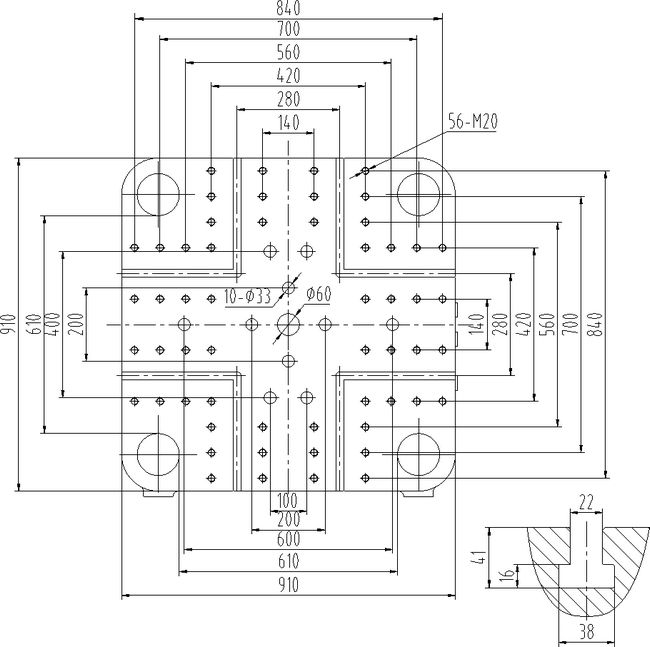

| PLATEN DIMENSIONS |  |

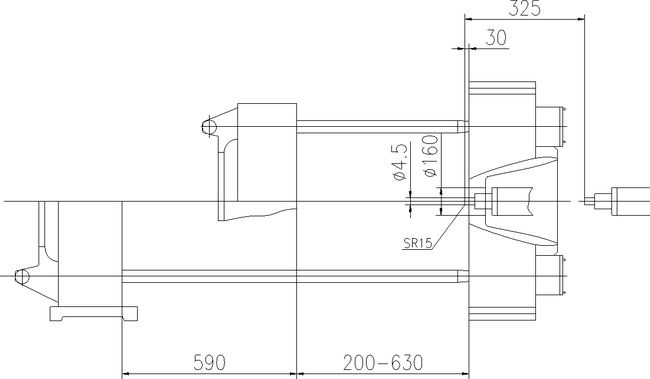

| MOULD SPACE DIMENSOINS |  |
