SPECIFICATION

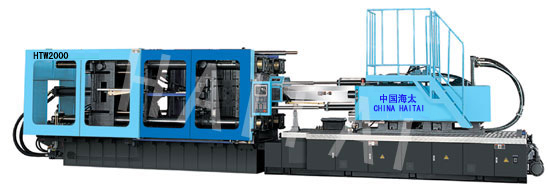

WZHTW2000
INJECTION UNIT
|
SPECIFICATION
|
WZHTW2000
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
130
|
140
|
150
|
150
|
| Screw L/D ratio | L/D |
25.9
|
24
|
22.4
|
18.9
|
| Shot volume(theoretical) | cm3 |
9460
|
11238
|
12900
|
11662
|
| Injiection weight(ps) | g |
8608
|
10226
|
11739
|
10612
|
| Injection rate | g/s |
1172
|
1360
|
1560
|
1650
|
| Injection pressure | Mpa |
190
|
163
|
142
|
126
|
| Screw pressure | rpm |
70
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
20000
|
|||
| Open stroke | mm |
1600
|
|||
| Space between tie bars(W×H) | mm |
1650×1500
|
|||
| Max.Mold height | mm |
1620
|
|||
| Min.Mold height | mm |
800
|
|||
| Ejector stroke | mm |
420
|
|||
| Ejector force | kN |
490
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16.5
|
|||
| Pump motor power | kW |
45+55+55
|
|||
| Heating power | kW |
110.7
|
|||
| Machine dimension(L×W×H) | m |
17.80×3.35×4.28
|
|||
| Oiltank cubage | L |
3700
|
|||
| Machine weight | t |
156
|
|||

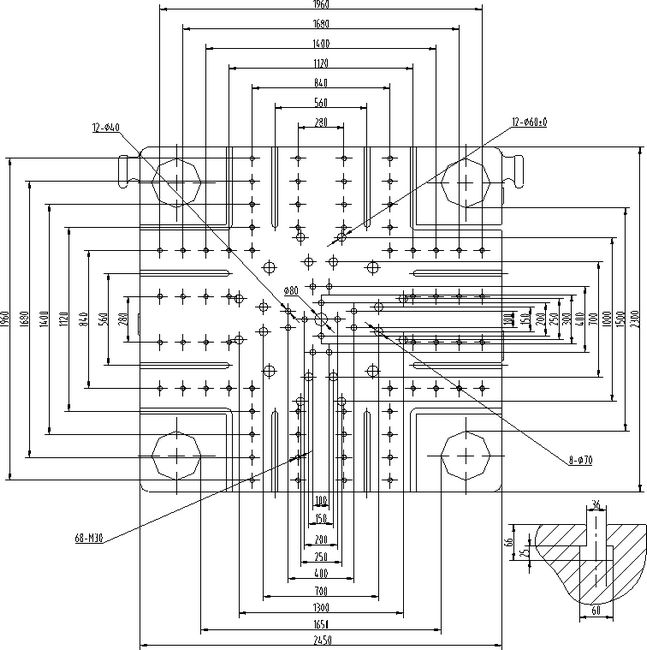

| PLATEN DIMENSIONS |  |

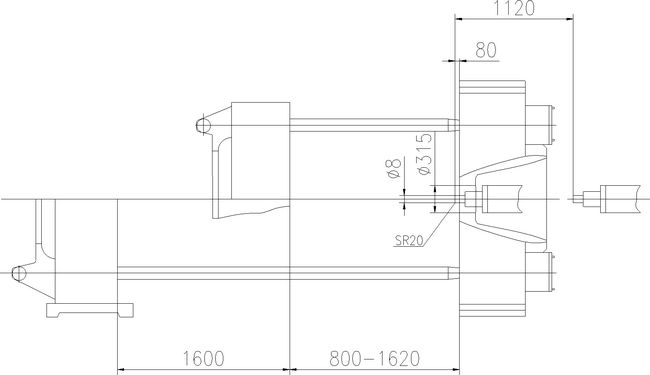

| MOULD SPACE DIMENSOINS |  |
