SPECIFICATION
|

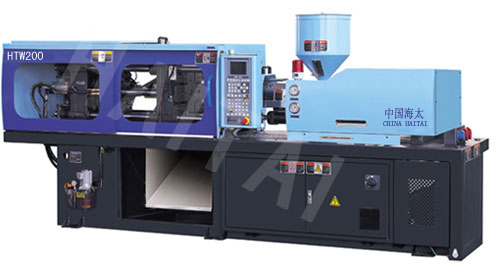

WZHTW200
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
45
|
50
|
55
|
| Screw L/D ratio | L/D |
23.3
|
21
|
19.1
|
| Shot volume(theoretical) | cm3 |
340
|
420
|
510
|
| Injiection weight(ps) | g |
310
|
383
|
466
|
| Injection rate | g/s |
124
|
154
|
186
|
| Injection pressure | Mpa |
207
|
168
|
139
|
| Screw pressure | rpm |
155
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
2000
|
||
| Open stroke | mm |
475
|
||
| Space between tie bars(W×H) | mm |
530×530
|
||
| Max.Mold height | mm |
530
|
||
| Min.Mold height | mm |
200
|
||
| Ejector stroke | mm |
140
|
||
| Ejector force | kN |
70
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
18.5
|
||
| Heating power | kW |
13.6
|
||
| Machine dimension(L×W×H) | m |
5.22×1.57×2.21
|
||
| Oiltank cubage | L |
300
|
||
| Machine weight | t |
7
|
||

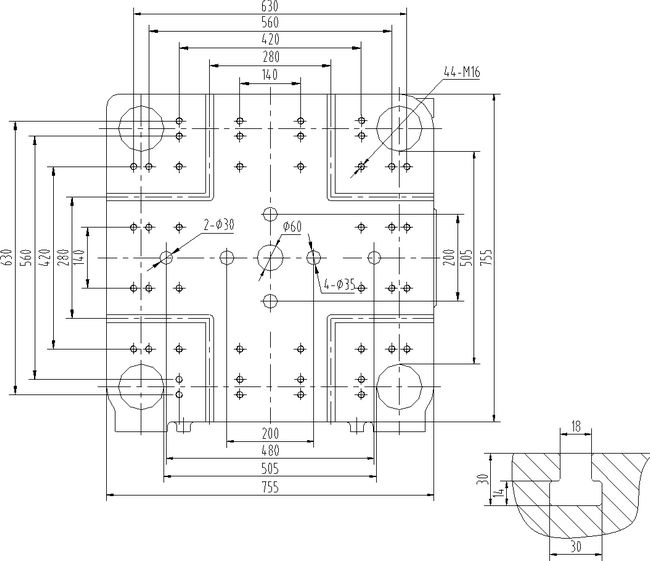

| PLATEN DIMENSIONS |  |

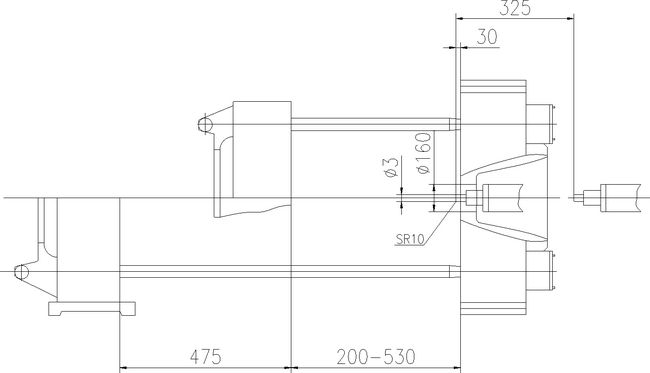

| MOULD SPACE DIMENSOINS |  |
