SPECIFICATION

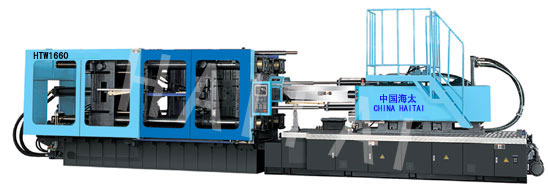

WZHTW1660
INJECTION UNIT
|
SPECIFICATION
|
WZHTW1660
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
120
|
130
|
140
|
150
|
| Screw L/D ratio | L/D |
25.4
|
23.4
|
21.7
|
18.9
|
| Shot volume(theoretical) | cm3 |
7368
|
8759
|
10159
|
11662
|
| Injiection weight(ps) | g |
6704
|
7970
|
9244
|
10612
|
| Injection rate | g/s |
1056
|
1240
|
1438
|
1650
|
| Injection pressure | Mpa |
195
|
165
|
145
|
126
|
| Screw pressure | rpm |
85
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
16600
|
|||
| Open stroke | mm |
1550
|
|||
| Space between tie bars(W×H) | mm |
1500×1400
|
|||
| Max.Mold height | mm |
1500
|
|||
| Min.Mold height | mm |
700
|
|||
| Ejector stroke | mm |
420
|
|||
| Ejector force | kN |
420
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
17.5
|
|||
| Pump motor power | kW |
45+45+45
|
|||
| Heating power | kW |
94.9
|
|||
| Machine dimension(L×W×H) | m |
16.35×3.15×4.17
|
|||
| Oiltank cubage | L |
3000
|
|||
| Machine weight | t |
125
|
|||

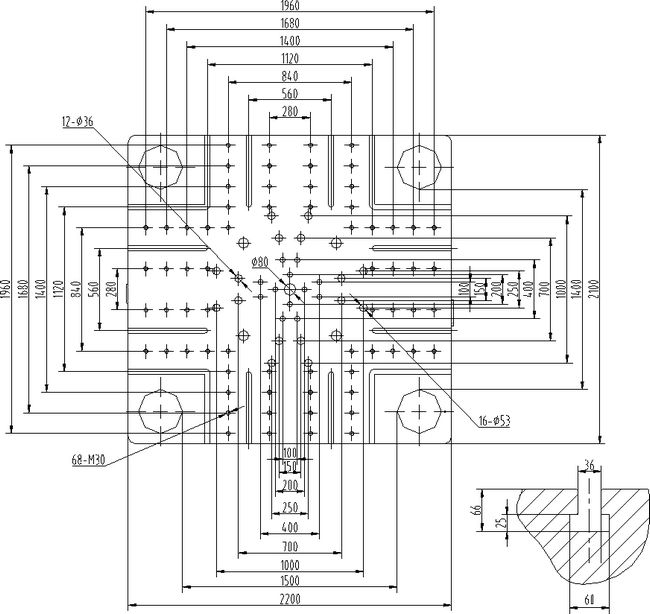

| PLATEN DIMENSIONS |  |

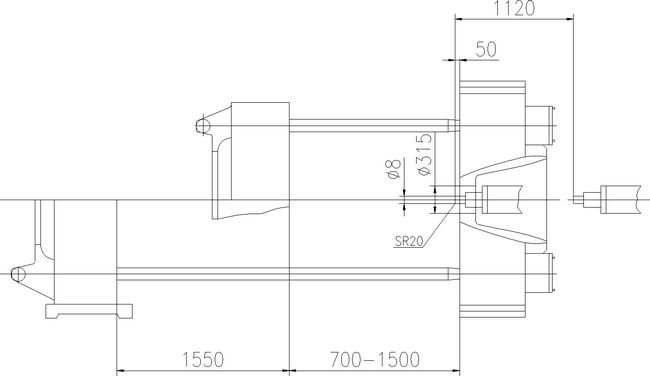

| MOULD SPACE DIMENSOINS |  |
