SPECIFICATION
|

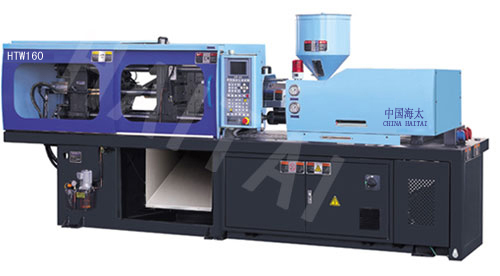

WZHTW160
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
42
|
45
|
50
|
| Screw L/D ratio | L/D |
23.6
|
22
|
19.8
|
| Shot volume(theoretical) | cm3 |
305
|
350
|
432
|
| Injiection weight(ps) | g |
277
|
319
|
393
|
| Injection rate | g/s |
138
|
160
|
196
|
| Injection pressure | Mpa |
203
|
177
|
143
|
| Screw pressure | rpm |
180
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
1600
|
||
| Open stroke | mm |
435
|
||
| Space between tie bars(W×H) | mm |
470×470
|
||
| Max.Mold height | mm |
520
|
||
| Min.Mold height | mm |
180
|
||
| Ejector stroke | mm |
140
|
||
| Ejector force | kN |
45
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
15
|
||
| Heating power | kW |
12.5
|
||
| Machine dimension(L×W×H) | m |
4.86×1.30×2.10
|
||
| Oiltank cubage | L |
250
|
||
| Machine weight | t |
6
|
||

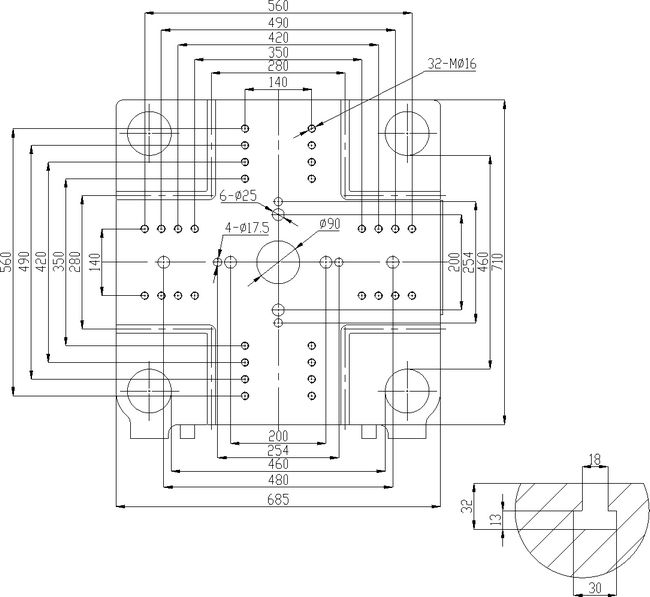

| PLATEN DIMENSIONS |  |

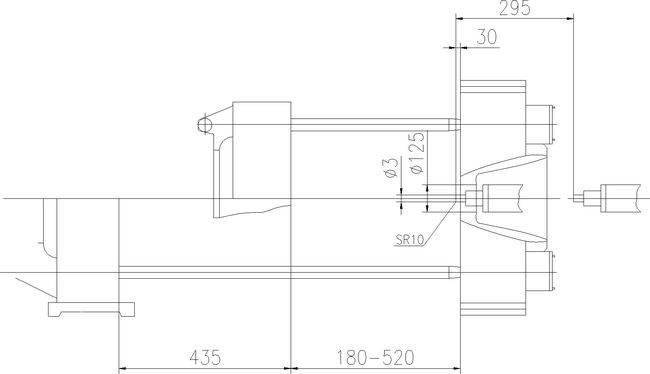

| MOULD SPACE DIMENSOINS |  |
