SPECIFICATION
WZHTW1400
INJECTION UNIT
|
SPECIFICATION
|
WZHTW1400
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
110
|
120
|
130
|
140
|
| Screw L/D ratio | L/D |
25.7
|
24
|
22
|
20
|
| Shot volume(theoretical) | cm3 |
6271
|
7463
|
8759
|
10158
|
| Injiection weight(ps) | g |
5706
|
6791
|
7970
|
9243
|
| Injection rate | g/s |
815
|
970
|
1138
|
1320
|
| Injection pressure | Mpa |
208
|
175
|
150
|
129+
|
| Screw pressure | rpm |
90
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
14000
|
|||
| Open stroke | mm |
1350
|
|||
| Space between tie bars(W×H) | mm |
1310×1300
|
|||
| Max.Mold height | mm |
1400
|
|||
| Min.Mold height | mm |
600
|
|||
| Ejector stroke | mm |
360
|
|||
| Ejector force | kN |
260
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
55+55
|
|||
| Heating power | kW |
86
|
|||
| Machine dimension(L×W×H) | m |
15.2×3.00×4.13
|
|||
| Oiltank cubage | L |
2900
|
|||
| Machine weight | t |
90
|
|||

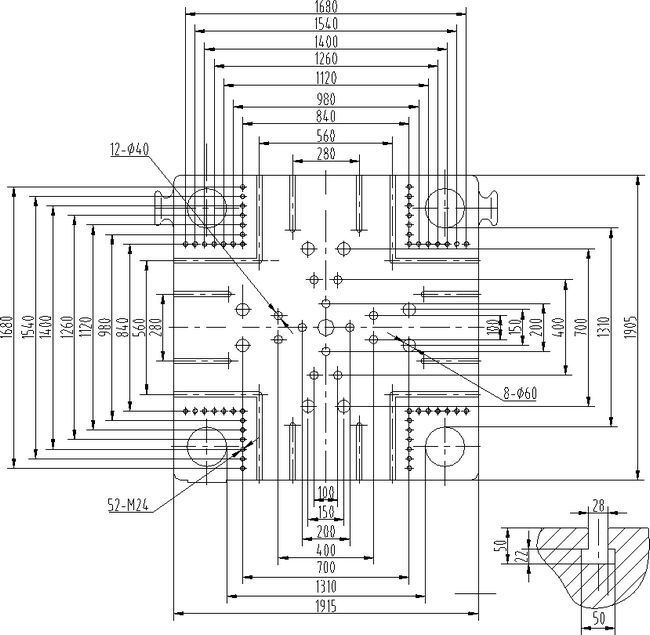

| PLATEN DIMENSIONS |  |

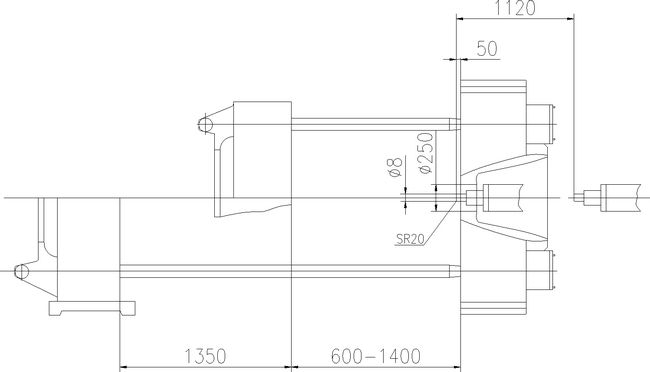

| MOULD SPACE DIMENSOINS |  |
