SPECIFICATION
|

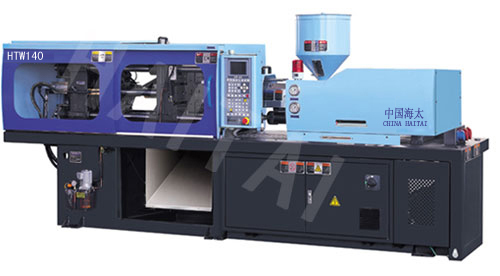

WZHTW140
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
38
|
42
|
45
|
| Screw L/D ratio | L/D |
22.1
|
20
|
18.6
|
| Shot volume(theoretical) | cm3 |
193
|
235
|
270
|
| Injiection weight(ps) | g |
176
|
213
|
246
|
| Injection rate | g/s |
94
|
115
|
132
|
| Injection pressure | Mpa |
205
|
170
|
147
|
| Screw pressure | rpm |
190
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
1400
|
||
| Open stroke | mm |
380
|
||
| Space between tie bars(W×H) | mm |
410×410
|
||
| Max.Mold height | mm |
450
|
||
| Min.Mold height | mm |
160
|
||
| Ejector stroke | mm |
120
|
||
| Ejector force | kN |
50
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
13
|
||
| Heating power | kW |
7.9
|
||
| Machine dimension(L×W×H) | m |
4.48×1.11×1.9
|
||
| Oiltank cubage | L |
230
|
||
| Machine weight | t |
0
|
||

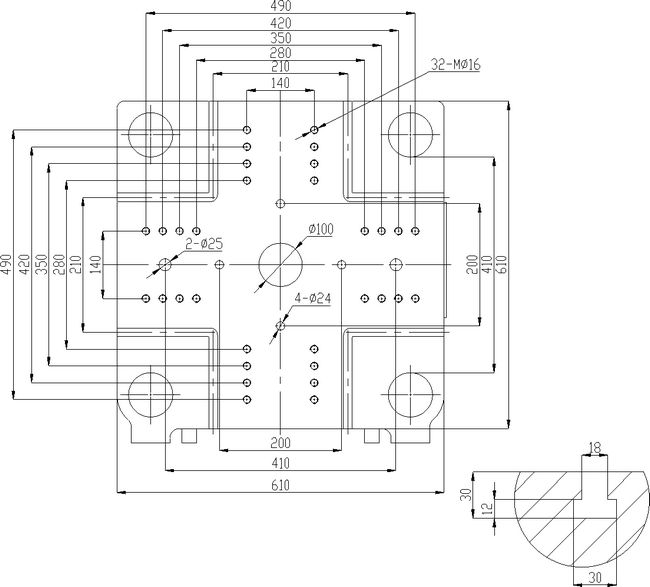

| PLATEN DIMENSIONS |  |

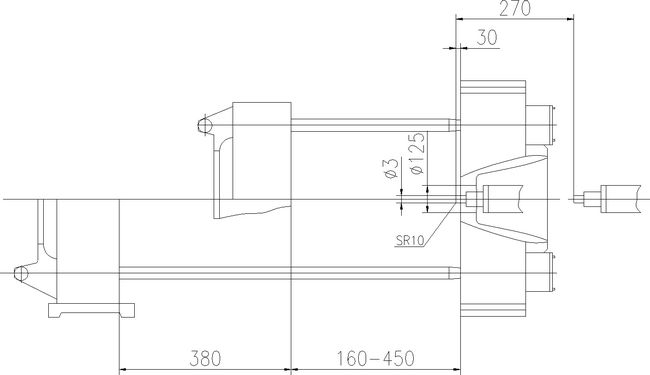

| MOULD SPACE DIMENSOINS |  |
