SPECIFICATION
WZHTW1200
INJECTION UNIT
|
SPECIFICATION
|
WZHTW1200
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
110
|
115
|
120
|
125
|
| Screw L/D ratio | L/D |
23
|
22
|
21
|
20.2
|
| Shot volume(theoretical) | cm3 |
5270
|
5760
|
6272
|
6805
|
| Injiection weight(ps) | g |
4796
|
5242
|
5707
|
6193
|
| Injection rate | g/s |
793
|
867
|
944
|
1024
|
| Injection pressure | Mpa |
186
|
170
|
156
|
144
|
| Screw pressure | rpm |
90
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
12000
|
|||
| Open stroke | mm |
1180
|
|||
| Space between tie bars(W×H) | mm |
1220×1100
|
|||
| Max.Mold height | mm |
1200
|
|||
| Min.Mold height | mm |
450
|
|||
| Ejector stroke | mm |
325
|
|||
| Ejector force | kN |
245
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
45+55
|
|||
| Heating power | kW |
66.1
|
|||
| Machine dimension(L×W×H) | m |
12.54×2.66×3.27
|
|||
| Oiltank cubage | L |
2100
|
|||
| Machine weight | t |
60
|
|||

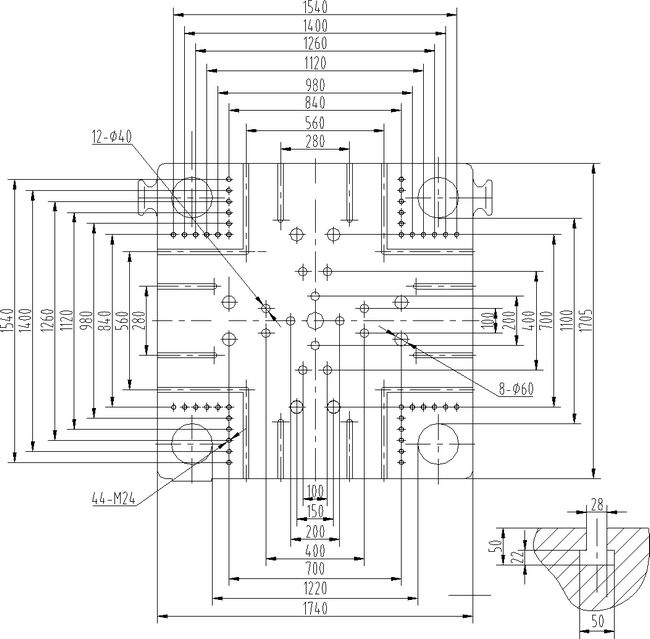

| PLATEN DIMENSIONS |  |

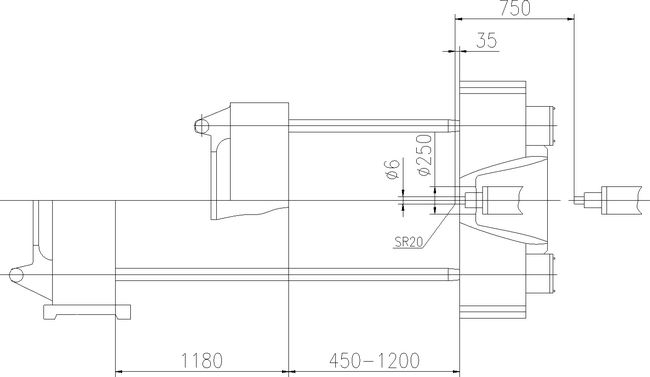

| MOULD SPACE DIMENSOINS |  |
