SPECIFICATION
|

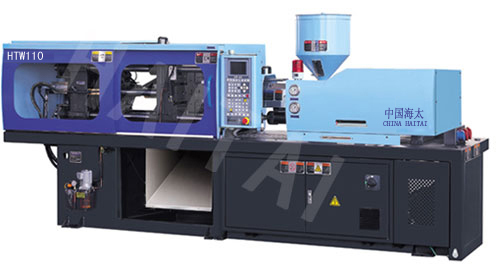

WZHTW110
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
32
|
35
|
38
|
42
|
| Screw L/D ratio | L/D |
24.1
|
22
|
20.2
|
18.4
|
| Shot volume(theoretical) | cm3 |
137
|
163
|
192
|
235
|
| Injiection weight(ps) | g |
125
|
148
|
175
|
213
|
| Injection rate | g/s |
74
|
89
|
105
|
128.1
|
| Injection pressure | Mpa |
260
|
219
|
186
|
152
|
| Screw pressure | rpm |
210
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
1100
|
|||
| Open stroke | mm |
350
|
|||
| Space between tie bars(W×H) | mm |
360×360
|
|||
| Max.Mold height | mm |
380
|
|||
| Min.Mold height | mm |
150
|
|||
| Ejector stroke | mm |
100
|
|||
| Ejector force | kN |
38
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
13
|
|||
| Heating power | kW |
8.2
|
|||
| Machine dimension(L×W×H) | m |
4.15×1.12×190
|
|||
| Oiltank cubage | L |
180
|
|||
| Machine weight | t |
3.4
|
|||

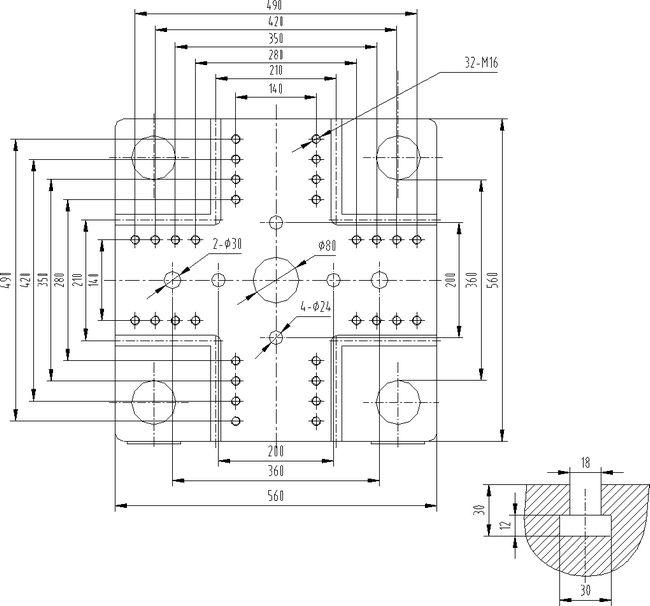

| PLATEN DIMENSIONS |  |

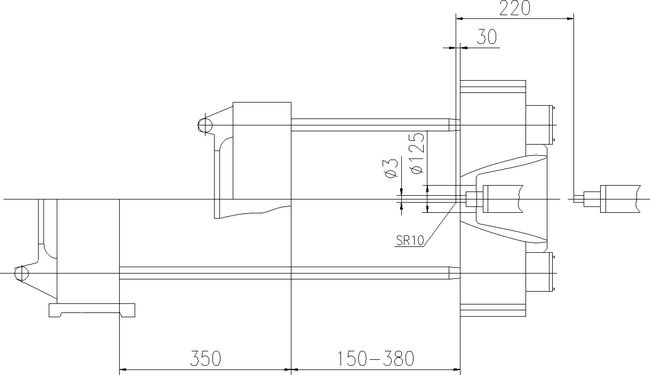

| MOULD SPACE DIMENSOINS |  |
|
|
