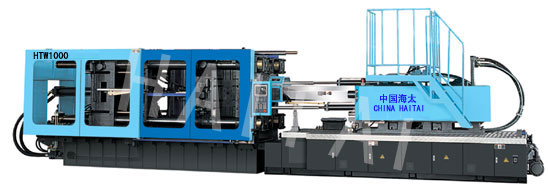

SPECIFICATION
WZHTW1000
INJECTION UNIT
|
SPECIFICATION
|
WZHTW1000
|
||||
|
A
|
B
|
C
|
D
|
||
|
INJECTION UNIT
|
|||||
| Screw diameter | mm |
90
|
100
|
110
|
115
|
| Screw L/D ratio | L/D |
25.5
|
23
|
20.9
|
20
|
| Shot volume(theoretical) | cm3 |
2920
|
3610
|
4369
|
4778
|
| Injiection weight(ps) | g |
2670
|
3300
|
3980
|
4325
|
| Injection rate | g/s |
580
|
717
|
867
|
948
|
| Injection pressure | Mpa |
216
|
176
|
146
|
133
|
| Screw pressure | rpm |
100
|
|||
|
CLAMPING UNIT
|
|||||
| Clamping force | kN |
10000
|
|||
| Open stroke | mm |
1000
|
|||
| Space between tie bars(W×H) | mm |
1080×1000
|
|||
| Max.Mold height | mm |
1100
|
|||
| Min.Mold height | mm |
400
|
|||
| Ejector stroke | mm |
325
|
|||
| Ejector force | kN |
345
|
|||
|
OTHERS
|
|||||
| Max.Pump pressure | MPa |
16
|
|||
| Pump motor power | kW |
37+45
|
|||
| Heating power | kW |
59
|
|||
| Machine dimension(L×W×H) | m |
12.1×2.64×3.00
|
|||
| Oiltank cubage | L |
1400
|
|||
| Machine weight | t |
53
|
|||

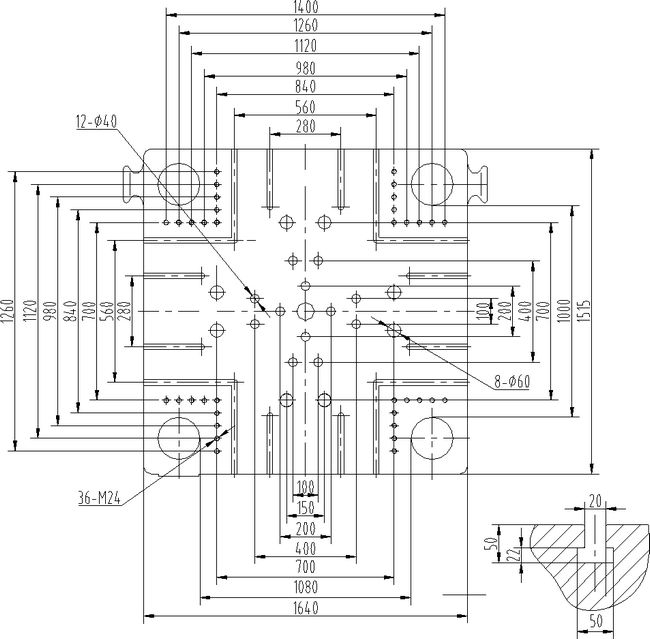

| PLATEN DIMENSIONS |  |

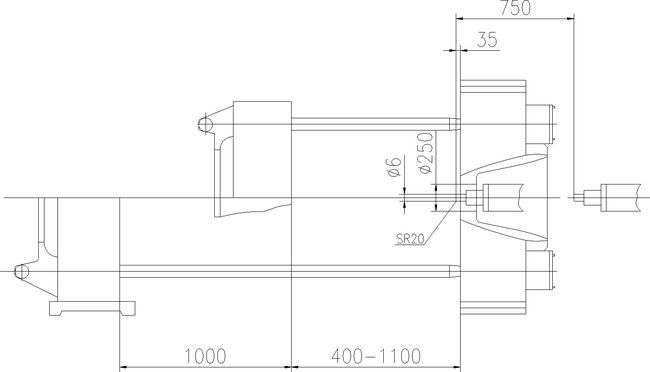

| MOULD SPACE DIMENSOINS |  |
