SPECIFICATION
|

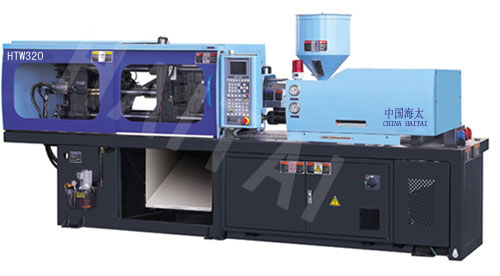

WZHTW320
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
67
|
70
|
75
|
| Screw L/D ratio | L/D |
22.5
|
21.5
|
20
|
| Shot volume(theoretical) | cm3 |
1181
|
1289
|
1480
|
| Injiection weight(ps) | g |
1076
|
1175
|
1349
|
| Injection rate | g/s |
337
|
368
|
422
|
| Injection pressure | Mpa |
186
|
170
|
148
|
| Screw pressure | rpm |
190
|
||
|
CLAMPING UNIT
|
||||
| Clamping force | kN |
3200
|
||
| Open stroke | mm |
660
|
||
| Space between tie bars(W×H) | mm |
660×660
|
||
| Max.Mold height | mm |
720
|
||
| Min.Mold height | mm |
250
|
||
| Ejector stroke | mm |
160
|
||
| Ejector force | kN |
70
|
||
|
OTHERS
|
||||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
37
|
||
| Heating power | kW |
24.7
|
||
| Machine dimension(L×W×H) | m |
7.21×1.90×2.34
|
||
| Oiltank cubage | L |
500
|
||
| Machine weight | t |
12.5
|
||

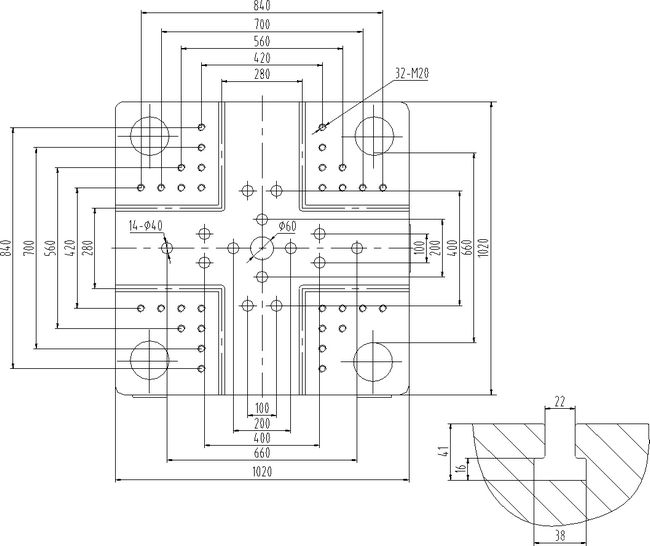

| PLATEN DIMENSIONS |  |

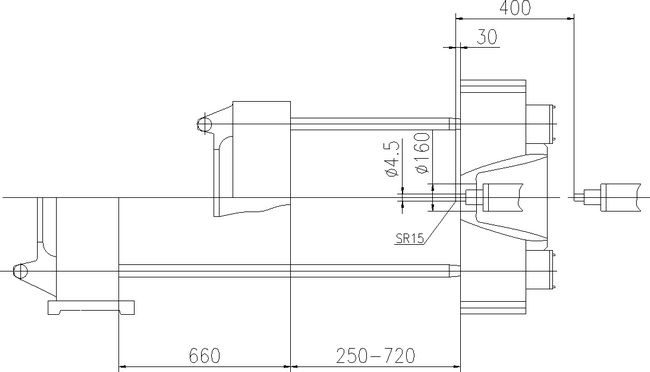

| MOULD SPACE DIMENSOINS |  |
